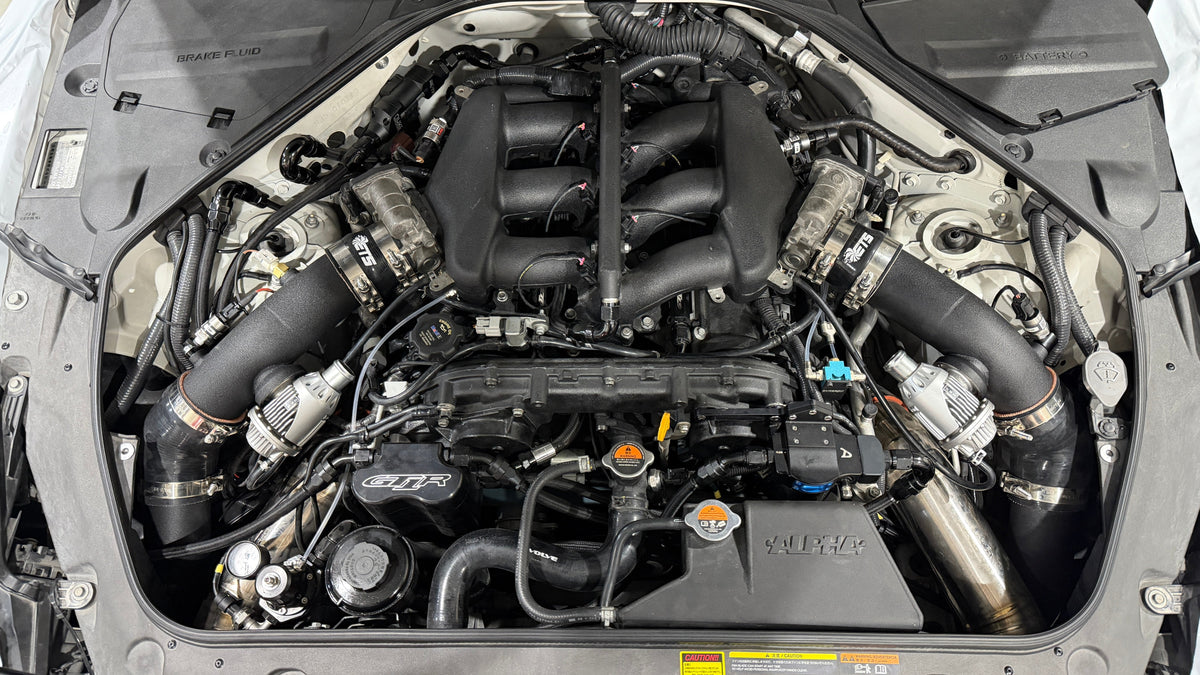

Nissan GT-R R35 1000+ HP Sensors Setup: What We Monitor & Why

Once a Nissan GT-R R35 exceeds 1,000 HP, making power is only part of the job. The tuner also needs accurate data showing what the VR38DETT, turbo system and fuel system are doing under load.

At Subzero Motorsport in Dubai, UAE, our 1000+ HP GT-R builds use additional pressure and temperature sensors alongside the factory Nissan sensors.

These inputs are monitored by Mohammad Al Jabri (MRJ) during calibration and are an important part of our tuning and engine-protection strategy.

What Extra Sensors Do We Use on a 1000+ HP Nissan GT-R R35?

Why Do We Use MAP Sensors on Both GT-R Charge Pipes?

The VR38DETT uses two turbochargers, so measuring only intake-manifold pressure does not show what is happening independently on each side of the turbo system.

We install a RIFE 5-bar MAP sensor on both the left and right charge pipes.

This allows the tuner to compare boost pressure between both sides and identify an abnormal pressure difference that could indicate an issue with the turbo system, wastegate operation, charge piping or boost control.

On a high-boost GT-R, this information becomes increasingly valuable as power increases.

Why Is There a 5-Bar MAP Sensor on the Intake Manifold?

The intake-manifold MAP sensor measures the actual boost pressure reaching the engine.

The OEM Nissan MAP sensor has a much lower pressure range, roughly around a 2-bar sensor, so once boost exceeds its measurable range, the ECU can no longer accurately see the actual manifold pressure.

On a high-horsepower GT-R running significantly more boost, we replace this with a RIFE 5-bar MAP sensor. The higher pressure range allows the ECU and tuner to accurately monitor manifold pressure at boost levels well beyond what the factory sensor was designed to measure.

This becomes particularly important on 1,000+ HP GT-R builds, where accurate boost data is critical for calibration, boost control and engine protection.



Why Does the T1 Fuel System Have Its Own MAP Sensor?

Our high-horsepower GT-R builds using a T1 brushless fuel system use a separate 5-bar MAP sensor as a load reference for the fuel-pump control system.

This gives the fuel system an independent pressure input rather than relying solely on the ECU's manifold-pressure sensor.

As boost and engine load increase, fuel demand rises accordingly. The objective is to make sure fuel delivery remains stable throughout the complete boost and RPM range. Subzero already specifies the T1 brushless system on its higher-power GT-R fuel configurations.

Why Is Fuel Pressure So Important?

A fuel system may have sufficient theoretical flow capacity, but what matters during a dyno pull or high-speed run is whether it can maintain the required fuel pressure under load.

The fuel-pressure sensor allows Mohammad Al Jabri to monitor pressure as boost, RPM and injector demand increase.

A drop in fuel pressure can be an early indication that the fuel system is no longer keeping up with engine demand.

For this reason, Subzero Motorsport considers fuel-pressure monitoring essential on modified GT-Rs rather than relying only on the advertised horsepower rating of the fuel pumps.

What Does the Intake Air Temperature Sensor Tell the Tuner?

Boost pressure alone does not tell the complete story.

The intake air temperature sensor (IAT) measures the temperature of the air entering the engine.

Because air temperature directly affects air density and the engine’s knock tendency, monitoring IAT becomes especially important during repeated dyno pulls, roll racing, drag racing, high-boost operation and sustained high-speed runs.

As intake air temperature increases, the risk of knock and detonation also increases. For this reason, the ECU calibration can be set to progressively reduce ignition timing as IAT rises, helping protect the engine when charge-air temperatures become excessive.

This allows Mohammad Al Jabri to build additional safety into the tune rather than relying on one fixed ignition-timing value under every condition.

This is particularly important in the UAE climate, where high ambient temperatures can significantly increase charge-air temperature during prolonged high-load operation.

Why Monitor Coolant Pressure on a High-Power VR38?

Coolant temperature tells us how hot the cooling system is, but coolant pressure can help show whether combustion pressure is getting into the cooling system.

On a high-boost VR38DETT, cylinder pressure is extremely high. If the head gasket does not seal properly, or if there is movement between the cylinder head and block under load, combustion pressure can enter the coolant passages.

This can cause a sudden or abnormal rise in coolant pressure during a dyno pull, often before coolant temperature shows anything unusual.

That makes coolant-pressure data useful for identifying possible issues such as head-gasket sealing failure, cylinder-head lift under high boost, combustion leakage into the cooling system, and abnormal cooling-system pressurisation under load.

For Mohammad Al Jabri, the important part is not only the absolute pressure, but also how coolant pressure behaves in relation to boost, RPM and engine load.

If coolant pressure rises sharply as boost increases, especially in a repeatable pattern, it can be an early warning that cylinder pressure is escaping past the head-gasket sealing area.

On a 1,000–2,000+ HP VR38DETT, this extra sensor gives the tuner another layer of engine-protection data







How Many Additional Sensors Does a 1000+ HP Subzero GT-R Use?

Our typical configuration described here uses seven additional sensors:

4 × RIFE 5-bar MAP sensors + 1 × intake air temperature sensor + 1 × fuel-pressure sensor + 1 × coolant-pressure sensor.

These work alongside the GT-R's OEM sensors rather than replacing the complete factory monitoring system.

How Does EcuTek Allow Us to Use These Additional Sensors?

EcuTek RaceROM allows us to integrate additional sensor inputs into the factory Nissan ECU and monitor them directly during tuning and data logging.

This gives Mohammad Al Jabri (MRJ) access to critical information such as fuel pressure, coolant pressure, manifold pressure and intake-air temperature, while also allowing these signals to be used as part of the car’s engine-protection strategies.

For a 1,000+ HP GT-R, this gives us much greater control and visibility while still retaining the factory ECU.

Why Does Mohammad Al Jabri Use All This Sensor Data?

At this power level, tuning cannot be based only on boost, air/fuel ratio and a dyno horsepower figure.

Mohammad Al Jabri (MRJ) uses the additional sensor data to understand what the engine, turbochargers and fuel system are doing throughout the run, with a strong focus on safety, consistency and engine protection.

The important parameters include left-bank boost, right-bank boost, manifold pressure, fuel-system load reference, fuel pressure, intake-air temperature and coolant pressure.

At Subzero Motorsport, the goal is not simply to know how much power the GT-R made, but to make sure that power is being produced with the correct fuel pressure, controlled temperatures, stable boost and no abnormal pressure behaviour.

For us, safety is a major part of the calibration process, especially on 1,000+ HP GT-R builds where small issues can quickly become serious under high boost.

The objective is to know what the complete system was doing while it made that power, not just the final dyno number.

FAQ

How many 5-bar MAP sensors does a 1000+ HP GT-R need?

Our high-power configuration can use four independent 5-bar MAP sensors: one on each charge pipe, one on the intake manifold for ECU pressure data and one dedicated to the T1 fuel-system controller.

Why measure boost separately on each bank of a Nissan GT-R?

Because the VR38DETT uses two turbochargers. Separate left and right charge-pipe pressure readings allow the tuner to compare both sides of the turbo system rather than relying only on one manifold-pressure value.

Does a 1000 HP GT-R need a fuel-pressure sensor?

For our high-power GT-R builds, yes. Fuel pressure is monitored under boost to verify that the complete fuel system maintains the required pressure as engine demand increases.

Does Subzero Motorsport retain the factory GT-R sensors?

Yes. These are additional monitoring sensors installed alongside the OEM Nissan sensor system.

Who tunes Subzero Motorsport's high-horsepower Nissan GT-R builds?

Subzero Motorsport's high-power GT-R calibrations are carried out by Mohammad Al Jabri (MRJ). Your existing SZM2200 build article also identifies him as the tuner using the factory Nissan ECU through EcuTek.
