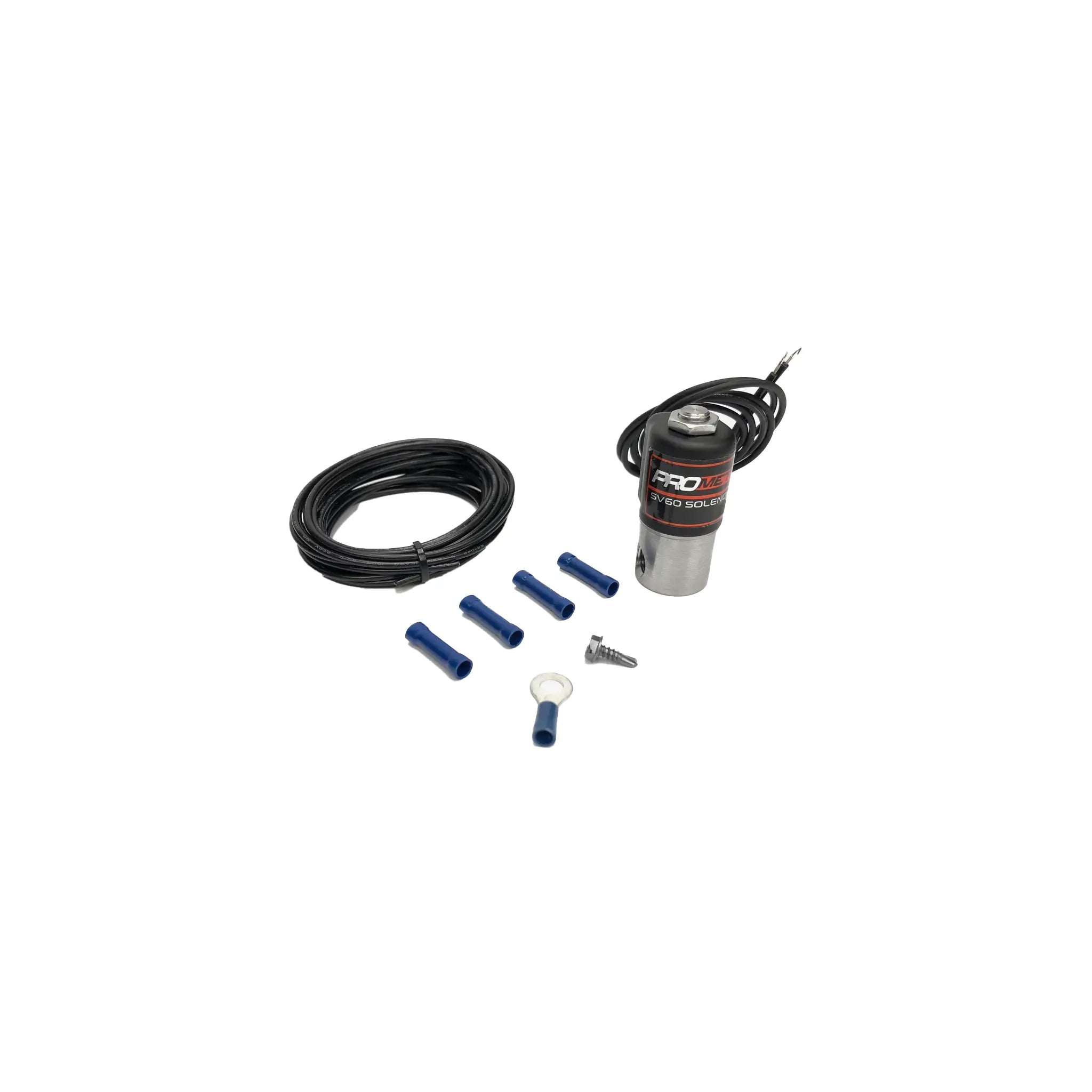

PROMETH SV60 SOLENOID (METHANOL)

Key Specifications & Features

• Fluid Compatibility: Rated for 100% pure methanol, ethanol, water, and water-methanol mixtures (uses methanol-resistant internals like PTFE/FKM seals to prevent degradation).

• Operating Voltage: 12V DC.

• Ports / Connections: Standard 1/8" NPT female inlet and outlet ports (allowing easy conversion to AN fittings or push-to-connect lines).

• Flow Capacity: High-flow design (SV60 rating) engineered to support high-horsepower demands without restricting fluid delivery.

• Response Time: Fast-acting coil response, making it suitable for both simple ON/OFF control and progressive/PWM (Pulse-Width Modulation) staging.

Primary Functions

1. Anti-Siphon Protection: Prevents fluid from being vacuum-drawn into the intake manifold or charge pipes when the injection pump is off but the engine is under high manifold vacuum.

2. Instant Fluid Control: Eliminates fluid line lag/dribble by placing the valve close to the nozzle, ensuring crisp ON/OFF delivery and preventing unintended combustion chamber dripping after boost drops.

3. Multi-Stage & Direct Port Injection: Ideal for controlling individual direct-port nozzles or staging secondary nozzles in high-boost, high-output setups.
